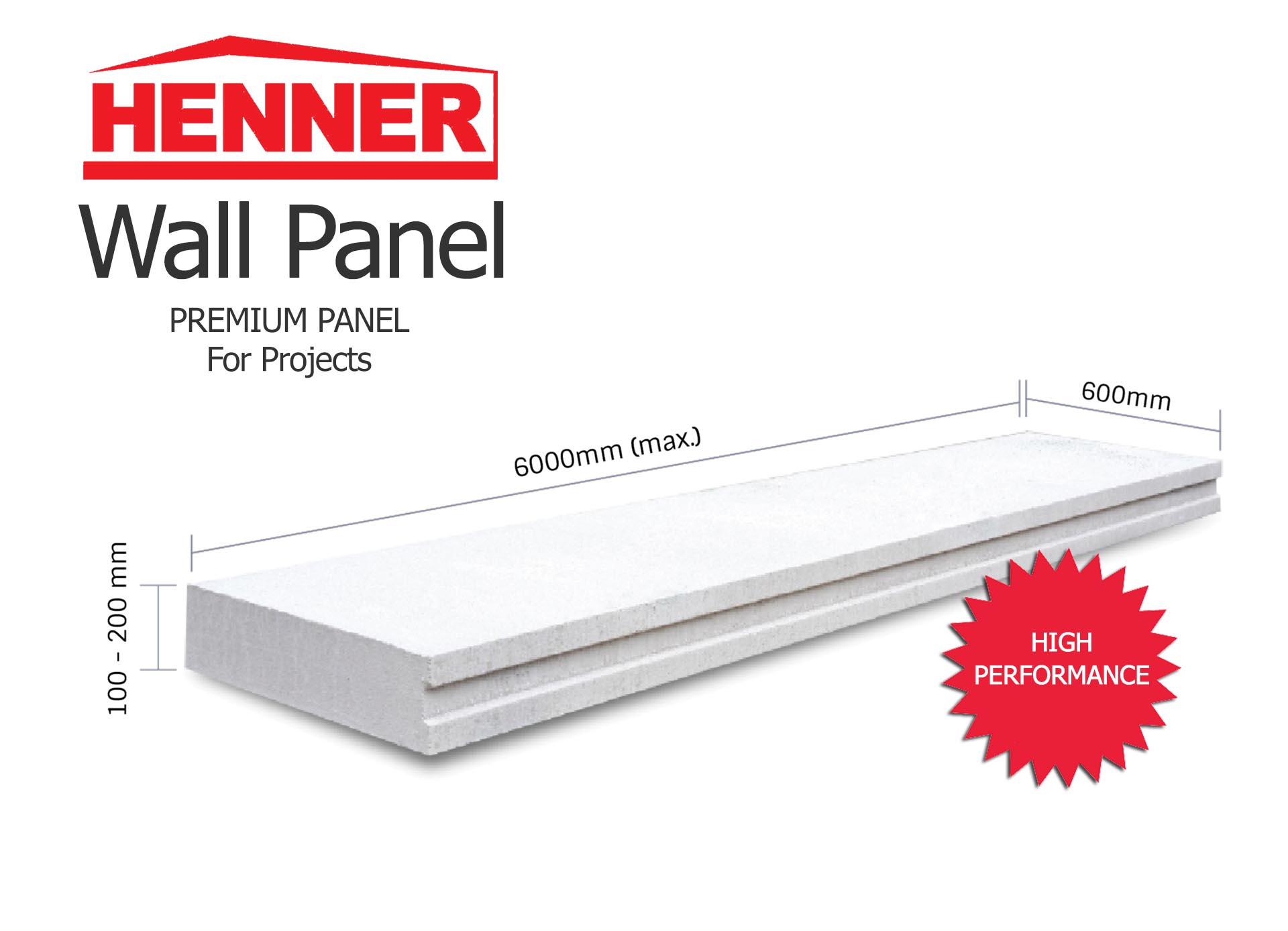

HENNER Wall Panel
Premium Wall Panels for Projects
HENNER Wall Panel offer an advantageous alternative where a solid wall is required but without the excessive weight of masonry or pre-cast concrete walls. Besides offering all the benefits of the HENNER panel system, the walls are also more resistant to movement and vibration compared to masonry walls.
Specifications:
- Features
- HENNER Wall Panels can be installed either horizontally or vertically. In addition to building applications, the wall panels can be used for outdoor applications such as fence walls and highway sound barriers.
| Property | Value | Units |
|---|---|---|
| Length | 6000 (max.) ± 5 | mm |
| Thickness | 100-200 ± 2 | mm |
| Width / Height | 600 ± 2 | mm |
| Mean Compressive Strength | 3.5 | Mpa |
| Dry Density | 550 ± 50 | kg/mm3 |
| Working Density | 750 - 900 ± 50 | kg/mm3 |
| Modulus of Elasticity, E | 2190 | Mpa |
